UL 1179 SRPVC电子线 HOOK-UP WIRE
说明 PRODUCT DESCRIPTION
|
●额定温度：90℃ ●额定电压：250V ●参考标准：UL758,UL1581 ●导体使用绞合26~10AWG镀锡或裸铜 ●SRPVC绝缘，符合ROHS环保标准 ●通过UL VW-1、CSA FT1阻燃测试 ●绝缘厚度均匀、易裁线、易剥皮 |
●Rated temperature：90℃ ●Rated voltage：250V ●Reference standard：UL758,UL1581 ●Stranded ,tinned or bare copper conductor 26~10AWG ●SRPVC insulation ,comply with ROHS environmental standard ●Passes UL VW-1,CSA FT1 flame test ●Uniform insulation thickness to ensure easy stripping and cutting |
应用 APPLICATION
●加热电缆组件用电阻线 ●Insulated Resistance Wire for Heating Cable Units
■印字 MARKING
AWM 1179 ( )AWG 90℃ 250V VW-1 E347813 CLEVER --- c AWM I A FT1 90℃ 250V （）AWG -LF-

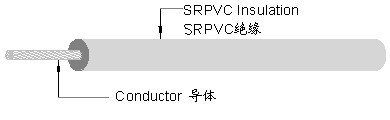

■产品结构 CABLE CONSTRUCTION
|
UL型号
UL STYLE |
导体 CONDUCTOR |
绝缘 INSULATION |
包装长度 PACKAGING LENGTH |
最大导体电阻 MAX.COND. RESISTANCE （Ω/km,20℃,DC） |
||||
|
线规 AWG |
线数/线径 No./mm |
外径 DIA. (mm) |
厚度 THICKNESS （mm） |
外径 O.D. (mm) |
英制 Ft/Coil |
公制 M/Coil |
||
|
UL1179 绞 线 (Stranded) |
26 |
7/0.16 |
0.48 |
0.75 |
2.00 |
2000 |
610 |
150 |
|
24 |
11/0.16 |
0.61 |
0.75 |
2.10 |
94.2 |
|||
|
22 |
17/0.16 |
0.76 |
0.75 |
2.30 |
59.4 |
|||
|
20 |
26/0.16 |
0.94 |
0.75 |
2.50 |
36.7 |
|||
|
18 |
41/0.16 |
1.18 |
0.75 |
2.70 |
23.2 |
|||
|
16 |
26/0.254 |
1.49 |
0.75 |
3.00 |
14.6 |
|||
|
14 |
41/0.254 |
1.88 |
0.75 |
3.40 |
1000 |
305 |
8.96 |
|
|
12 |
65/0.254 |
2.36 |
0.75 |
3.90 |
5.64 |
|||
|
10 |
105/0.254 |
3.42 |
0.75 |
4.90 |
3.54 |
|||
conductor tolerance 单支导体公差：+/-0.005mm, wire tolerance导线外径公差：ＯＤ+/-0.10mm
以上仅供参考，详细规格按双方确认规格书为准。
