UL 1316&1452加强型电子线 REINFORCED HOOK-UP WIRE
说明 PRODUCT DESCRIPTION
|
●额定温度：105℃ ●额定电压：600V ●参考标准：UL758,UL1581 ●导体使用单支或绞合26-12AWG镀锡或裸铜 ●PVC绝缘，符合ROHS环保标准 ●尼龙护套，符合ROHS环保标准 ●通过UL VW-1、CSA FT1阻燃测试 ●使用标准绝缘厚度、易裁线、易剥皮 |
●Rated temperature：105℃ ●Rated voltage：600V ●Reference standard：UL758,UL1581 ●Solid or stranded 26-12AWG tinned or bare copper conductor ●PVC insulation , comply with ROHS environmental standard ●Nylon covering , comply with ROHS environmental standard ●Passes UL VW-1,CSA FT1 flame test ●Uniform insulation thickness to ensure easy stripping and cutting |
应用 APPLICATION
●用于一般电子、电器设备内部连接线 ●For general purpose internal wiring of appliance.
■印字 MARKING
AWM 1316 ( )AWG 105℃ 600V VW-1 E347813 CLEVER --- c AWM I A FT1 105℃ 600V（）AWG -LF-

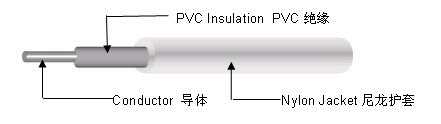

■产品结构 CABLE CONSTRUCTION
|
UL型号
UL STYLE |
导体 CONDUCTOR |
绝缘 INSULATION |
外绝缘 COVERING |
包装长度 PACKAGING LENGTH |
最大导体电阻 MAX.COND. RESISTANCE （Ω/km,20℃,DC） |
|||||
|
线规 AWG |
线数/线径 No./mm |
外径 DIA. (mm) |
绝缘厚度 INSULATION THICKNESS (mm) |
外径 O.D. (mm) |
护套厚度 JACKET THICKNESS (mm) |
外径 O.D. (mm) |
英制 Ft/Coil |
公制 M/Coil |
||
|
UL1316 绞 线 (Stranded)
|
26 |
7/0.16 |
0.48 |
0.40 |
1.25 |
0.10 |
1.45 |
2000 |
610 |
150 |
|
24 |
11/0.16 |
0.61 |
0.40 |
1.40 |
0.10 |
1.60 |
94.2 |
|||
|
22 |
17/0.16 |
0.76 |
0.40 |
1.55 |
0.10 |
1.75 |
59.4 |
|||
|
20 |
26/0.16 |
0.94 |
0.40 |
1.75 |
0.10 |
1.95 |
36.7 |
|||
|
18 |
41/0.16 |
1.18 |
0.40 |
2.00 |
0.10 |
2.20 |
23.2 |
|||
|
16 |
26/0.254 |
1.49 |
0.40 |
2.30 |
0.10 |
2.50 |
14.6 |
|||
|
14 |
41/0.254 |
1.88 |
0.40 |
2.70 |
0.10 |
2.90 |
1000 |
305 |
8.96 |
|
|
12 |
65/0.254 |
2.36 |
0.40 |
3.20 |
0.10 |
3.40 |
5.64 |
|||
|
UL1316 单 支 (Solid)
|
26 |
1/0.404 |
0.40 |
0.40 |
1.25 |
0.10 |
1.45 |
2000 |
610 |
143 |
|
24 |
1/0.511 |
0.51 |
0.40 |
1.35 |
0.10 |
1.55 |
89.3 |
|||
|
22 |
1/0.643 |
0.64 |
0.40 |
1.50 |
0.10 |
1.70 |
56.4 |
|||
|
20 |
1/0.813 |
0.81 |
0.40 |
1.65 |
0.10 |
1.85 |
35.2 |
|||
|
18 |
1/1.024 |
1.02 |
0.40 |
1.85 |
0.10 |
2.05 |
22.2 |
|||
|
16 |
1/1.29 |
1.29 |
0.40 |
2.20 |
0.10 |
2.40 |
14.0 |
|||
conductor tolerance 单支导体公差：+/-0.005mm, wire tolerance导线外径公差：ＯＤ+/-0.10mm
以上仅供参考，详细规格按双方确认规格书为准。
