UL2835低压电脑线 LOW VOLTAGE COMPUTER CABLE
说明 PRODUCT DESCRIPTION
|
●额定温度：60℃ ●额定电压：30V ●参考标准：UL758,UL1581 ●导体使用单支或绞合最小40AWG镀锡或裸铜 ●SR-PVC/PVC绝缘，符合ROHS环保标准 ●镀锡或裸铜编织屏蔽 ●PVC护套，符合ROHS环保标准 ●通过UL VW-1、cUL FT1及JQA F-Mark阻燃测试 ●使用标准绝缘厚度、易裁线、易剥皮 |
●Rated temperature：60℃ ●Rated voltage：30V ●Reference standard：UL758,UL1581 ●Solid or stranded ,tinned or bare copper conductor 40AWG min. ●SR-PVC/PVC insulation , comply with ROHS environmental standard ●Tinned or bare copper wire braid shield ●PVC jacket , comply with ROHS environmental standard ●Passes UL VW-1,cUL FT1 and JQA F-Mark flame test ●Uniform insulation thickness to ensure easy stripping and cutting |
应用 APPLICATION
●用于一般电子、电器设备内部连接线 ●For general purpose internal wiring of appliance.
■印字 MARKING
AWM 2835 ( )AWG 60℃ 30V VW-1 E347813 CLEVER --- c AWM I A FT1 60℃ 30V （）AWG -LF-

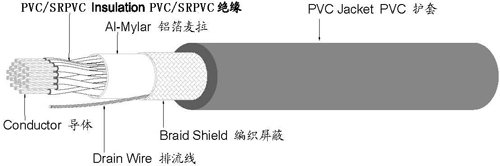

■产品结构 CABLE CONSTRUCTION
|
导体 CONDUCTOR |
绝缘 INSULATION |
屏蔽 SHIELD |
排流线 DRAIN |
编织 BRAID |
护套 JACKET |
最大导体电阻 MAX.COND. RESISTANCE (Ω/km,20℃,DC) |
|||||
|
规格 AWG |
构造 CONSTR- UCTION (No./mm) |
外径 DIA. (mm) |
芯数 (No.) |
绝缘厚度 INSULATION THICKNESS (mm) |
外径 O.D. (mm) |
构造 CONSTRU- CTION |
构造 CONSTR- UCTION (No./mm) |
构造 CONSTRU- CTION (No./No./mm) |
护套厚度 JACKET THICKNESS (mm) |
外径 O.D. (mm) |
|
|
30 |
7/0.10 |
0.30 |
2 |
0.25 |
0.80 |
Al-mylar |
7/0.10 |
16/4/0.10TD |
0.50 |
3.10 |
381 |
|
3 |
0.25 |
0.80 |
Al-mylar |
16/4/0.10TD |
0.54 |
3.30 |
|||||
|
4 |
0.25 |
0.80 |
Al-mylar |
16/4/0.10TD |
0.54 |
3.50 |
|||||
|
5 |
0.25 |
0.80 |
Al-mylar |
16/5/0.10TD |
0.52 |
3.70 |
|||||
|
6 |
0.25 |
0.80 |
Al-mylar |
16/6/0.10TD |
0.55 |
4.00 |
|||||
|
7 |
0.25 |
0.80 |
Al-mylar |
16/6/0.10TD |
0.55 |
4.00 |
|||||
|
8 |
0.25 |
0.80 |
Al-mylar |
16/6/0.10TD |
0.53 |
4.20 |
|||||
|
9 |
0.25 |
0.80 |
Al-mylar |
16/7/0.10TD |
0.57 |
4.60 |
|||||
|
10 |
0.25 |
0.80 |
Al-mylar |
16/7/0.10TD |
0.60 |
4.90 |
|||||
|
28 |
7/0.127 |
0.38 |
2 |
0.26 |
0.90 |
Al-mylar |
7/0.127 |
16/4/0.10TD |
0.50 |
3.30 |
239 |
|
3 |
0.26 |
0.90 |
Al-mylar |
16/5/0.10TD |
0.53 |
3.50 |
|||||
|
4 |
0.26 |
0.90 |
Al-mylar |
16/5/0.10TD |
0.51 |
3.70 |
|||||
|
5 |
0.26 |
0.90 |
Al-mylar |
16/6/0.10TD |
0.54 |
4.00 |
|||||
|
6 |
0.26 |
0.90 |
Al-mylar |
16/6/0.10TD |
0.55 |
4.30 |
|||||
|
7 |
0.26 |
0.90 |
Al-mylar |
16/6/0.10TD |
0.55 |
4.30 |
|||||
|
8 |
0.26 |
0.90 |
Al-mylar |
16/7/0.10TD |
0.57 |
4.60 |
|||||
|
9 |
0.26 |
0.90 |
Al-mylar |
16/7/0.10TD |
0.59 |
5.00 |
|||||
|
10 |
0.26 |
0.90 |
Al-mylar |
24/5/0.10TD |
0.60 |
5.30 |
|||||
|
26 |
7/0.16 |
0.48 |
2 |
0.26 |
1.00 |
Al-mylar |
7/0.16 |
16/5/0.10TD |
0.50 |
3.50 |
150 |
|
3 |
0.26 |
1.00 |
Al-mylar |
16/5/0.10TD |
0.47 |
3.60 |
|||||
|
4 |
0.26 |
1.00 |
Al-mylar |
16/6/0.10TD |
0.54 |
4.00 |
|||||
|
5 |
0.26 |
1.00 |
Al-mylar |
16/6/0.10TD |
0.50 |
4.20 |
|||||
|
6 |
0.26 |
1.00 |
Al-mylar |
16/6/0.10TD |
0.55 |
4.60 |
|||||
|
7 |
0.26 |
1.00 |
Al-mylar |
16/7/0.10TD |
0.55 |
4.60 |
|||||
|
8 |
0.26 |
1.00 |
Al-mylar |
16/7/0.10TD |
0.60 |
5.00 |
|||||
|
9 |
0.26 |
1.00 |
Al-mylar |
24/5/0.10TD |
0.60 |
5.40 |
|||||
|
10 |
0.26 |
1.00 |
Al-mylar |
24/6/0.10TD |
0.60 |
5.70 |
|||||
|
24 |
11/0.16 |
0.61 |
2 |
0.25 |
1.10 |
Al-mylar |
11/0.16 |
16/5/0.10TD |
0.50 |
3.70 |
94.2 |
|
3 |
0.25 |
1.10 |
Al-mylar |
16/5/0.10TD |
0.52 |
3.90 |
|||||
|
4 |
0.25 |
1.10 |
Al-mylar |
16/6/0.10TD |
0.52 |
4.20 |
|||||
|
5 |
0.25 |
1.10 |
Al-mylar |
16/7/0.10TD |
0.52 |
4.50 |
|||||
|
6 |
0.25 |
1.10 |
Al-mylar |
16/7/0.10TD |
0.55 |
4.90 |
|||||
|
7 |
0.25 |
1.10 |
Al-mylar |
16/7/0.10TD |
0.55 |
4.90 |
|||||
|
8 |
0.25 |
1.10 |
Al-mylar |
16/7/0.10TD |
0.59 |
5.30 |
|||||
|
9 |
0.25 |
1.10 |
Al-mylar |
24/6/0.10TD |
0.62 |
5.80 |
|||||
|
10 |
0.25 |
1.10 |
Al-mylar |
24/6/0.10TD |
0.65 |
6.20 |
|||||
|
22 |
17/0.16 |
0.76 |
2 |
0.27 |
1.30 |
Al-mylar |
17/0.16 |
16/6/0.10TD |
0.50 |
4.10 |
59.4 |
|
3 |
0.27 |
1.30 |
Al-mylar |
16/6/0.10TD |
0.50 |
4.30 |
|||||
|
4 |
0.27 |
1.30 |
Al-mylar |
16/7/0.10TD |
0.58 |
4.80 |
|||||
|
5 |
0.27 |
1.30 |
Al-mylar |
24/5/0.10TD |
0.60 |
5.20 |
|||||
|
6 |
0.27 |
1.30 |
Al-mylar |
24/6/0.10TD |
0.60 |
5.60 |
|||||
|
7 |
0.27 |
1.30 |
Al-mylar |
24/6/0.10TD |
0.60 |
5.60 |
|||||
|
8 |
0.27 |
1.30 |
Al-mylar |
24/6/0.10TD |
0.66 |
6.10 |
|||||
|
9 |
0.27 |
1.30 |
Al-mylar |
24/7/0.10TD |
0.65 |
6.60 |
|||||
|
10 |
0.27 |
1.30 |
Al-mylar |
24/7/0.10TD |
0.70 |
7.10 |
|||||
conductor tolerance 单支导体公差：+/-0.005mm, wire tolerance导线外径公差：ＯＤ+/-0.10mm
以上仅供参考，详细规格按双方确认规格书为准。
