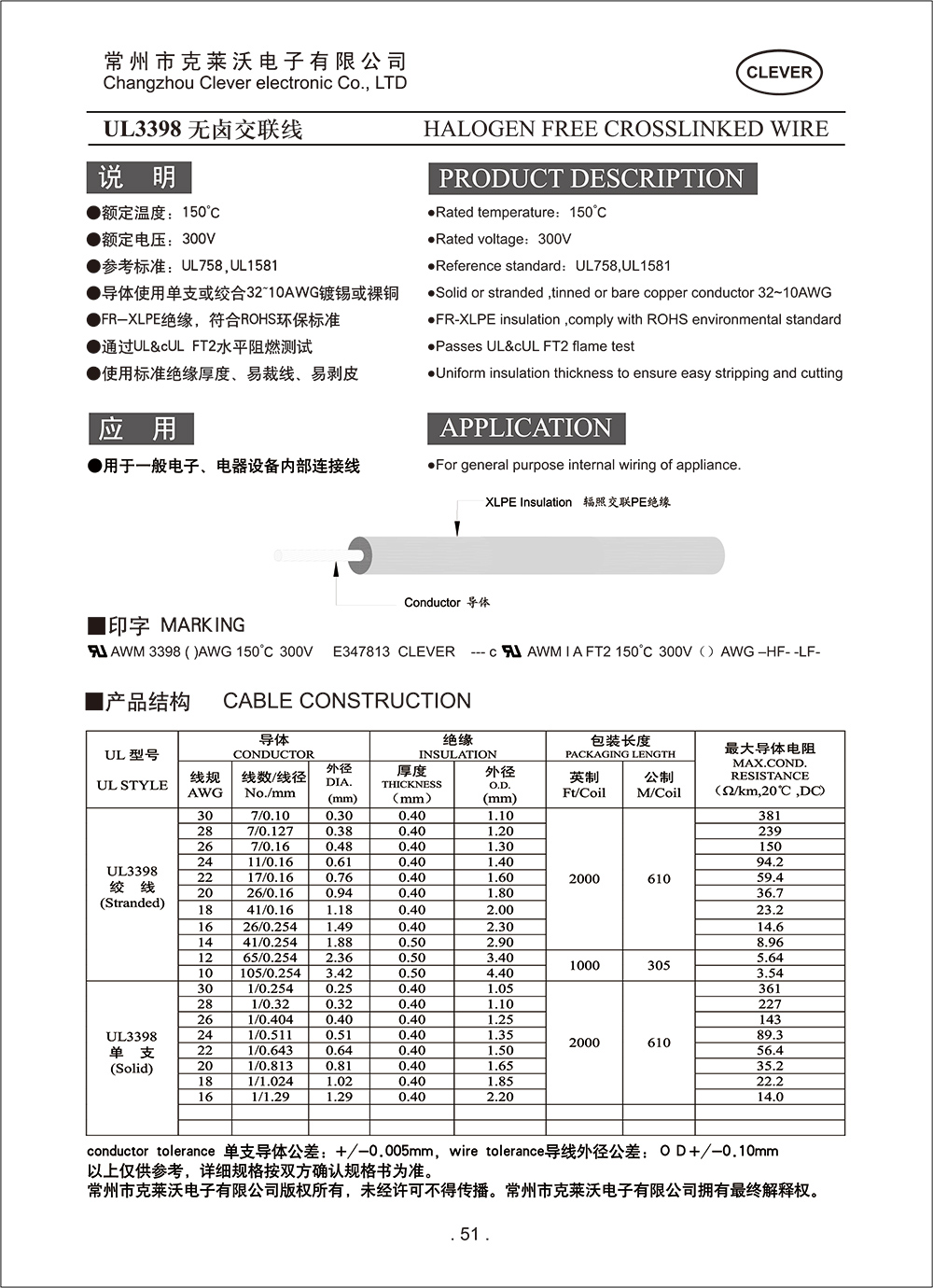

UL3398无卤交联线 HALOGEN FREE CROSSLINKED WIRE
说明 PRODUCT DESCRIPTION应用 APPLICATION
●额定温度:150℃
●额定电压:300V
●参考标准:UL758,UL1581
●导体使用单支或绞合32~10AWG镀锡或裸铜
●FR-XLPE绝缘,符合ROHS环保标准
●通过UL&cUL FT2水平阻燃测试
●使用标准绝缘厚度、易裁线、易剥皮
●Rated temperature:150℃
●Rated voltage:300V
●Reference standard:UL758,UL1581
●Solid or stranded ,tinned or bare copper conductor 32~10AWG
●FR-XLPE insulation ,comply with ROHS environmental standard
●Passes UL&cUL FT2 flame test
●Uniform insulation thickness to ensure easy stripping and cutting
●用于一般电子、电器设备内部连接线 ●For general purpose internal wiring of appliance.
■印字 MARKING
AWM 3398 ( )AWG 150℃ 300V E347813 CLEVER --- c AWM I A FT2 150℃ 300V()AWG –HF- -LF-

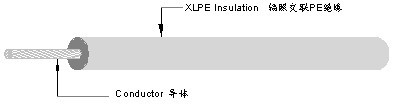

■产品结构 CABLE CONSTRUCTIONconductor tolerance 单支导体公差:+/-0.005mm, wire tolerance芯线外径公差:OD+/-0.10mm。
UL型号
UL STYLE
导体
CONDUCTOR
绝缘
INSULATION
包装长度
PACKAGING LENGTH
最大导体电阻
MAX.COND.
RESISTANCE (Ω/km,20℃,DC)
线规
AWG
线数/线径
No./mm
外径
DIA.
(mm)
厚度
THICKNESS
(mm)
外径
O.D.
(mm)
英制
Ft/Coil
公制
M/Coil
UL3398
绞 线
(Stranded)
30
7/0.10
0.30
0.40
1.10
2000
610
381
28
7/0.127
0.38
0.40
1.20
239
26
7/0.16
0.48
0.40
1.30
150
24
11/0.16
0.61
0.40
1.40
94.2
22
17/0.16
0.76
0.40
1.60
59.4
20
26/0.16
0.94
0.40
1.80
36.7
18
41/0.16
1.18
0.40
2.00
23.2
16
26/0.254
1.49
0.40
2.30
14.6
14
41/0.254
1.88
0.50
2.90
8.96
12
65/0.254
2.36
0.50
3.40
1000
305
5.64
10
105/0.254
3.42
0.50
4.40
3.54
UL3398
单 支
(Solid)
30
1/0.254
0.25
0.40
1.05
2000
610
361
28
1/0.32
0.32
0.40
1.10
227
26
1/0.404
0.40
0.40
1.25
143
24
1/0.511
0.51
0.40
1.35
89.3
22
1/0.643
0.64
0.40
1.50
56.4
20
1/0.813
0.81
0.40
1.65
35.2
18
1/1.024
1.02
0.40
1.85
22.2
16
1/1.29
1.29
0.40
2.20
14.0
