UL SJT/SJTW电源软线 Flexible Power Cords
说明 PRODUCT DESCRIPTION
|
●额定温度：60℃, 105℃ ●额定电压：300V ●参考标准：UL62,UL1581,CSA22.2No49 ●导体使用单支或绞合18~10AWG镀锡或裸铜 ●PVC绝缘，符合ROHS环保标准 ●镀锡或裸铜编织屏蔽 ●PVC护套，符合ROHS环保标准 ●通过UL VW-1、CSA FT2、JQA-F-Mark阻燃测试 ●使用标准绝缘厚度、易裁线、易剥皮 |
●Rated temperature：60℃, 105℃ ●Rated voltage：300V ●Reference standard：UL62,UL1581, CSA22.2No49 ●Solid or stranded ,tinned or bare copper conductor 18~10AWG ●PVC insulation , comply with ROHS environmental standard ●Tinned or bare copper wire braid shield ●PVC jacket , comply with ROHS environmental standard ●Passes UL VW-1、CSA FT2、JQA-F-Mark flame test ●Uniform insulation thickness to ensure easy stripping and cutting |
应用 APPLICATION
●用于一般电子、电器设备内部连接线 ●For general purpose internal wiring of appliance.
■印字 MARKING
SJT ( )AWG 105℃ 300V VW-1 CLEVER --- CSA TYPE SJT FT2 105℃ 300V（）AWG(mm2) -LF-
SJTW ( )AWG 105℃ 300V VW-1 CLEVER --- CSA TYPE SJTW FT2 105℃ 300V（）AWG(mm2) -LF-

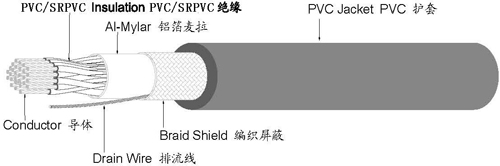

■产品结构 CABLE CONSTRUCTION
|
导体 CONDUCTOR |
绝缘 INSULATION |
屏蔽（可选） SHIELD |
编织（可选） BRAID |
护套 JACKET |
最大导体直流电阻 MAX.COND. RESISTSNCE (（Ω/km,20℃,DC） |
|||||
|
规格 AWG |
构造 CONSTR- UCTION (No./mm) |
外径 DIA. (mm) |
芯数 (No) |
绝缘厚度 INSULATION THICKNESS (mm) |
外径 O.D. (mm) |
构造 CONSTRU- CTION |
构造 CONSTRU- CTION (No./No./mm) |
护套厚度 JACKET THICKNESS (mm) |
外径 O.D. (mm) |
|
|
18 |
41/0.16 |
1.18 |
2 |
0.76 |
2.80 |
Al-mylar |
16/8/0.10 |
0.76 |
7.50 |
22.4 |
|
3 |
0.76 |
2.80 |
Al-mylar |
16/8/0.12 |
0.76 |
7.80 |
||||
|
4 |
0.76 |
2.80 |
Al-mylar |
16/8/0.12 |
0.76 |
8.50 |
||||
|
16 |
26/0.254 |
1.49 |
2 |
0.76 |
3.10 |
Al-mylar |
16/8/0.10 |
0.76 |
8.20 |
14.1 |
|
3 |
0.76 |
3.10 |
Al-mylar |
16/8/0.12 |
0.76 |
8.50 |
||||
|
4 |
0.76 |
3.10 |
Al-mylar |
16/8/0.12 |
0.76 |
9.30 |
||||
|
14 |
41/0.254 |
1.88 |
2 |
0.76 |
3.50 |
Al-mylar |
16/8/0.10 |
0.76 |
8.90 |
8.88 |
|
3 |
0.76 |
3.50 |
Al-mylar |
16/8/0.12 |
0.76 |
9.30 |
||||
|
4 |
0.76 |
3.50 |
Al-mylar |
16/8/0.12 |
0.76 |
10.30 |
||||
|
12 |
65/0.254 |
2.36 |
2 |
0.76 |
4.00 |
Al-mylar |
16/8/0.10 |
0.76 |
10.50 |
5.58 |
|
3 |
0.76 |
4.00 |
Al-mylar |
16/8/0.12 |
0.76 |
11.00 |
||||
|
4 |
0.76 |
4.00 |
Al-mylar |
16/8/0.12 |
0.76 |
12.15 |
||||
conductor tolerance 单支导体公差：+/-0.005mm, wire tolerance芯线外径公差：ＯＤ+/-0.10mm
以上仅供参考，详细规格按双方确认规格书为准。
