UL THW耐油尼龙护套线 Nylon Oil WIRE
说明 PRODUCT DESCRIPTION
●额定温度:75℃ ●额定电压:600V ●参考标准:UL83,UL1581,CSA C22.2 No.75 ●导体使用单支或绞合14-2/0AWG镀锡或裸铜 ●PVC绝缘,符合ROHS环保标准 ●尼龙护套,符合ROHS环保标准 ●通过UL VW-1、CSA FT1阻燃测试 ●使用标准绝缘厚度、易裁线、易剥皮,耐油 |
●Rated temperature:75℃ ●Rated voltage:600V ●Reference standard:UL83,UL1581,CSA C22.2 No.75 ●Solid or stranded14-2/0AWG tinned or bare copper conductor ●PVC insulation , comply with ROHS environmental standard ●Nylon covering , comply with ROHS environmental standard ●Passes UL VW-1,CSA FT1 flame test ●Uniform insulation thickness to ensure easy stripping and cutting |
应用 APPLICATION
●用于耐油电子、电器设备内部连接线 ●For oil purpose internal wiring of appliance.
■印字 MARKING
THW ( ) AWG 75℃ 600V VW-1 CLEVER –LF--

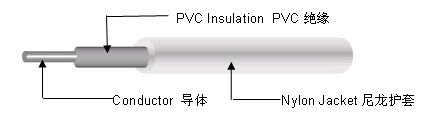

■产品结构 CABLE CONSTRUCTION
UL型号
UL STYLE |
导体 CONDUCTOR |
绝缘 INSULATION |
外绝缘 COVERING |
包装长度 PACKAGING LENGTH |
最大导体电阻 MAX.COND. RESISTANCE (Ω/km,20℃,DC) |
|||||
线规 AWG |
线数/线径 No./mm |
外径 DIA. (mm) |
绝缘厚度 INSULATION THICKNESS (mm) |
外径 O.D. (mm) |
护套厚度 JACKET THICKNESS (mm) |
外径 O.D. (mm) |
英制 Ft/Coil |
公制 M/Coil |
||
14 |
19/0.374 |
1.88 |
0.80 |
3.50 |
0.10 |
3.70 |
1000 |
305 |
8.96 |
|
12 |
19/0.49 |
2.36 |
0.80 |
4.00 |
0.10 |
4.20 |
1000 |
305 |
5.64 |
|
10 |
19/0.61 |
3.06 |
0.80 |
4.70 |
0.10 |
4.90 |
1000 |
305 |
3.54 |
conductor tolerance 单支导体公差:+/-0.005mm, wire tolerance芯线外径公差:OD+/-0.10mm。
以上仅供参考,详细规格按双方确认规格书为准。
