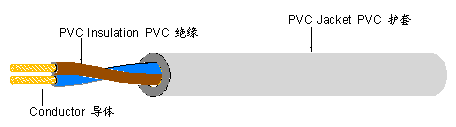

60227 IEC 53(RVV) PVC护套软电线
说明 PRODUCT DESCRIPTION
|
●额定温度：70℃ ●额定电压：300/500V ●参考标准：GB/T5023.5-2008 ●导体使用绞合0.75~2.5mm2镀锡或裸铜 ●PVC绝缘，符合ROHS环保标准 ●PVC护套，符合ROHS环保标准 ●通过GB/T18380.12-2008阻燃测试 ●使用标准绝缘厚度、易裁线、易剥皮 |
●Rated temperature：70℃ ●Rated voltage：300/500V ●Reference standard：GB/T5023.5-2008 ●Stranded ,tinned or bare copper conductor 0.75~2.5mm2 ●PVC insulation , comply with ROHS environmental standard ●PVC jacket , comply with ROHS environmental standard ●Passes GB/T18380.12-2008 flame test ●Uniform insulation thickness to ensure easy stripping and cutting |
应用 APPLICATION
●用于一般电子、电器电源连接线 ●For general purpose use for power supply cord.
■印字 MARKING
CCC 60227 IEC53(RVV) 300/500V ( )mm2 GB5023-2008 ELECTRONIC CO., LTD
■产品结构 CABLE CONSTRUCTION
|
型号
STYLE |
导体 CONDUCTOR |
芯数 (No.) 护套厚度 JACKET THICKNESS (mm) |
绝缘 INSULATION |
护套 JACKET |
包装长度 PACKAGING LENGTH |
裸铜最大导体电阻 MAX.COND. RESISTANCE （Ω/km,20℃,DC） |
|||||
|
面积 CROSS SECTION (mm2) |
线数/线径 No./mm |
外径 DIA. (mm) |
厚度 THICKNESS (mm) |
外径 O.D. (mm) |
护套厚度 JACKET THICKNESS (mm) |
外径 O.D. (mm) |
英制 Ft/Coil |
公制 M/Coil |
|||
|
60227IEC 53(RVV) |
0.75 |
24/0.20 |
1.13 |
2 |
0.61 0.61 0.61 0.61 0.61 0.60 0.60 0.60 |
2.35 |
0.80 |
3.95×6.30 |
660 |
200 |
26.0 |
|
2 |
2.35 |
0.80 |
6.30 |
660 |
200 |
||||||
|
3 |
2.35 |
0.82 |
6.70 |
660 |
200 |
||||||
|
4 |
2.35 |
0.82 |
7.30 |
490 |
150 |
||||||
|
5 |
2.35 |
0.93 |
8.20 |
330 |
100 |
||||||
|
1 |
32/0.20 |
1.31 |
2 |
2.50 |
0.80 |
6.60 |
660 |
200 |
19.5 |
||
|
3 |
2.50 |
0.86 |
7.10 |
490 |
150 |
||||||
|
4 |
2.50 |
0.93 |
7.90 |
490 |
150 |
||||||
|
5 |
0.60 |
2.50 |
0.93 |
8.60 |
330 |
100 |
|||||
|
1.5 |
30/0.25 |
1.58 |
2 |
0.71 |
3.00 |
0.80 |
7.60 |
490 |
150 |
13.3 |
|
|
3 |
0.71 |
3.00 |
0.92 |
8.30 |
330 |
100 |
|||||
|
4 |
0.71 |
3.00 |
1.08 |
9.40 |
330 |
100 |
|||||
|
5 |
0.71 |
3.00 |
1.15 |
10.40 |
330 |
100 |
|||||
|
2.5 |
49/0.25 |
2.02 |
2 |
0.82 |
3.65 |
1.00 |
9.30 |
330 |
100 |
7.98 |
|
|
3 |
0.82 |
3.65 |
1.07 |
10.00 |
330 |
100 |
|||||
|
4 |
0.82 |
3.65 |
1.19 |
11.20 |
330 |
100 |
|||||
|
5 |
0.82 |
3.65 |
1.32 |
12.50 |
330 |
100 |
|||||
conductor tolerance 单支导体公差：+/-0.005mm, wire toleranceＯＤ导线外径公差： +/-0.10mm.cable tolerancＯＤ线缆外径 +/-0.30mm。 以上仅供参考，详细规格按双方确认规格书为准。
