UL VDE H05S-K 硅橡胶电子线 High Temperature Wire
说明 PRODUCT DESCRIPTION
|
●额定温度：180℃ ●额定电压：300V/500V ●参考标准：VDE DIN0282-3 ●导体使用单支或绞合 0.5~2.5mm2 镀锡或裸铜 ●硅橡胶绝缘，符合ROHS环保标准 ●绝缘厚度均匀、易裁线、易剥皮 |
●Rated temperature：180℃ ●Rated voltage：300V/500V ●Reference standard：VDE DIN0282-3 ●Solid or stranded ,tinned or bare copper conductor 0.5~2.5mm2 ●Silicone rubber insulation ,comply with ROHS environmental standard ●Uniform insulation thickness to ensure easy stripping and cutting |
应用 APPLICATION
●用于一般电子、电器设备内部连接线 ●For general purpose internal wiring of appliance.
■印字 MARKING
VDE CLEVER H05S-K () mm2

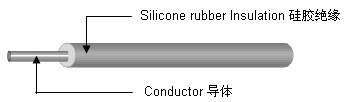

■产品结构 CABLE CONSTRUCTION
|
型号
STYLE |
导体 CONDUCTOR |
绝缘 INSULATION |
包装长度 PACKAGING LENGTH |
最大导体电阻 MAX.COND. RESISTANCE （Ω/km,20℃,DC） |
||||
|
线规 AWG |
线数/线径 No./mm |
外径 DIA. (mm) |
厚度 THICKNESS （mm） |
外径 O.D. (mm) |
英制 Ft/Coil |
公制 M/Coil |
||
|
H05S-K 绞 线 (Stranded)
|
0.50 |
20/0.18 |
0.95 |
0.80 |
2.55 |
2000 |
610 |
40.1 |
|
0.75 |
30/0.18 |
1.15 |
0.80 |
2.75 |
26.7 |
|||
|
1.00 |
40/0.18 |
1.30 |
0.80 |
3.00 |
20.0 |
|||
|
1.50 |
30/0.25 |
1.58 |
0.80 |
3.20 |
13.70 |
|||
|
2.50 |
49/0.25 |
2.00 |
1.00 |
4.00 |
1000 |
305 |
8.21 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
conductor tolerance 单支导体公差：+/-0.005mm, wire tolerance导线外径公差：ＯＤ+/-0.10mm
以上仅供参考，详细规格按双方确认规格书为准
