QVR 汽车线 AUTOMOTIVE WIRE
说明 PRODUCT DESCRIPTION
|
●额定温度：70℃ ●参考标准：JB/T 8139-1999 ●导体使用绞合0.2~10mm2镀锡或裸铜 ●PVC绝缘，符合ROHS环保标准 ●通过JB/T 8139-1999 6.5.8阻燃测试 ●使用标准绝缘厚度、易裁线、易剥皮 |
●Rated temperature：70℃ ●Reference standard：JB/T 8139-1999 ●Stranded ,tinned or bare copper conductor0.2~10mm2 ●PVC insulation , comply with ROHS environmental standard ●Passes JB/T 8139-1999 6.5.8 flame test ●Uniform insulation thickness to ensure easy stripping and cutting |
应用 APPLICATION
●用于汽车内部连接线 ●For vehicle internal wiring of appliance
■印字 MARKING
JB/T8139-1999 QVR XXmm2 CLEVER –LF– 或不印字

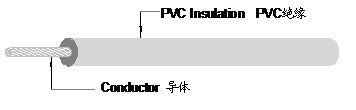

■产品结构 CABLE CONSTRUCTION
|
型号
STYLE |
导体 CONDUCTOR |
绝缘 INSULATION |
包装长度 PACKAGING LENGTH |
最大导体电阻 MAX.COND. RESISTANCE （Ω/km,20℃,DC） |
||||
|
面积 CROSS SECTION (mm2) |
线数/线径 No./mm |
外径 DIA. (mm) |
厚度 THICKNESS （mm） |
外径 O.D. (mm) |
英制 Ft/Coil |
公制 M/Coil |
||
|
QVR |
0.2 |
12/0.15 |
0.60 |
0.33 |
1.25 |
1640 |
500 |
95.0 |
|
0.3 |
16/0.15 |
0.69 |
0.33 |
1.35 |
1640 |
500 |
71.2 |
|
|
0.4 |
23/0.15 |
0.83 |
0.34 |
1.50 |
1640 |
500 |
49.6 |
|
|
0.5 |
16/0.20 |
0.92 |
0.64 |
2.20 |
1640 |
500 |
40.1 |
|
|
0.75 |
24/0.20 |
1.13 |
0.69 |
2.50 |
1640 |
500 |
26.7 |
|
|
1.0 |
32/0.20 |
1.31 |
0.65 |
2.60 |
1640 |
500 |
20.0 |
|
|
1.5 |
30/0.25 |
1.58 |
0.64 |
2.85 |
1640 |
500 |
13.7 |
|
|
2.5 |
49/0.25 |
2.02 |
0.74 |
3.50 |
980 |
300 |
8.21 |
|
|
4 |
56/0.30 |
2.59 |
0.91 |
4.40 |
980 |
300 |
5.09 |
|
|
6 |
84/0.30 |
3.17 |
0.87 |
4.90 |
980 |
300 |
3.39 |
|
|
10 |
84/0.40 |
4.23 |
1.04 |
6.30 |
660 |
200 |
1.95 |
|
|
|
|
|
|
|
|
|
|
|
conductor tolerance 单支导体公差：+/-0.005mm, wire tolerance导线外径公差：ＯＤ+/-0.10mm
以上仅供参考，详细规格按双方确认规格书为准
