UL2725低压电脑线 LOW VOLTAGE COMPUTER CABLE
说明 PRODUCT DESCRIPTION
|
●额定温度：60℃,80℃ ●额定电压：30V ●参考标准：UL758,UL1581 ●导体使用单支或绞合镀锡或裸铜 ●SR-PVC/PVC绝缘，符合ROHS环保标准 ●镀锡或裸铜缠绕屏蔽 ●PVC护套，符合ROHS环保标准 ●通过UL VW-1及JQA F-Mark阻燃测试 ●使用标准绝缘厚度、易裁线、易剥皮 |
●Rated temperature：60℃,80℃ ●Rated voltage：30V ●Reference standard：UL758,UL1581 ●Solid or stranded ,tinned or bare copper conductor ●SR-PVC/PVC insulation ,comply with ROHS environmental standard ●Tinned or bare copper wire spiral shield ●PVC jacket , comply with ROHS environmental standard ●Passes UL VW- and JQA F-Mark flame test ●Uniform insulation thickness to ensure easy stripping and cutting |
应用 APPLICATION
●用于一般电子、电器设备内部连接线 ●For general purpose internal wiring of appliance.
■印字 MARKING
AWM 2725 ( )AWG 80℃ 30V VW-1 E347813 CLEVER --- c AWM I A FT1 80℃ 30V （）AWG -LF-

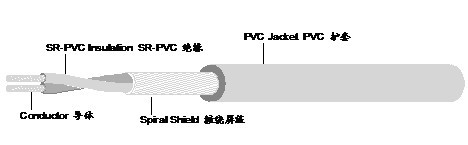

■产品结构 CABLE CONSTRUCTION
|
导体 CONDUCTOR |
绝缘 INSULATION |
屏蔽 SHIELD |
护套 JACKET |
最大导体电阻 MAX.COND. RESISTANCE (Ω/km,20℃,DC) |
|||||
|
规格 AWG |
构造 CONSTR- UCTION (No./mm) |
外径 DIA. (mm) |
芯数 (No.) |
绝缘厚度 INSULATION THICKNESS (mm) |
外径 O.D. (mm) |
构造 CONSTRU- CTION (No./mm) |
护套厚度 JACKET THICKNESS (mm) |
外径 O.D. (mm) |
|
|
30 |
7/0.10 |
0.30 |
2 |
0.25 |
0.80 |
45/0.10 |
0.40 |
2.60 |
381 |
|
3 |
0.25 |
0.80 |
48/0.10 |
0.44 |
2.80 |
||||
|
4 |
0.25 |
0.80 |
54/0.10 |
0.43 |
3.00 |
||||
|
5 |
0.25 |
0.80 |
50/0.12 |
0.40 |
3.20 |
||||
|
6 |
0.25 |
0.80 |
55/0.12 |
0.43 |
3.50 |
||||
|
7 |
0.25 |
0.80 |
55/0.12 |
0.43 |
3.50 |
||||
|
28 |
7/0.127 |
0.38 |
2 |
0.26 |
0.90 |
50/0.10 |
0.40 |
2.80 |
239 |
|
3 |
0.26 |
0.90 |
54/0.10 |
0.43 |
3.00 |
||||
|
4 |
0.26 |
0.90 |
50/0.12 |
0.39 |
3.20 |
||||
|
5 |
0.26 |
0.90 |
56/0.12 |
0.42 |
3.50 |
||||
|
6 |
0.26 |
0.90 |
62/0.12 |
0.43 |
3.80 |
||||
|
7 |
0.26 |
0.90 |
62/0.12 |
0.43 |
3.80 |
||||
|
26 |
7/0.16 |
0.48 |
2 |
0.26 |
1.00 |
55/0.10 |
0.40 |
3.00 |
150 |
|
3 |
0.26 |
1.00 |
50/0.12 |
0.40 |
3.20 |
||||
|
4 |
0.26 |
1.00 |
56/0.12 |
0.42 |
3.50 |
||||
|
5 |
0.26 |
1.00 |
62/0.12 |
0.43 |
3.80 |
||||
|
6 |
0.26 |
1.00 |
69/0.12 |
0.43 |
4.10 |
||||
|
7 |
0.26 |
1.00 |
69/0.12 |
0.43 |
4.10 |
||||
conductor tolerance 单支导体公差：+/-0.005mm, wire tolerance导线外径公差：ＯＤ+/-0.10mm
以上仅供参考，详细规格按双方确认规格书为准。
