UL2992低压电脑线 LOW VOLTAGE COMPUTER CABLE
说明 PRODUCT DESCRIPTION
|
●额定温度：105℃ ●额定电压：30V ●参考标准：UL758,UL1581 ●导体使用单支或绞合最小40AWG镀锡或裸铜 ●SR-PVC/PVC绝缘，符合ROHS环保标准 ●镀锡或裸铜编织屏蔽 ●PVC护套，符合ROHS环保标准 ●通过UL VW-1、cUL FT1阻燃测试 ●使用标准绝缘厚度、易裁线、易剥皮 |
●Rated temperature：105℃ ●Rated voltage：30V ●Reference standard：UL758,UL1581 ●Solid or stranded ,tinned or bare copper conductor 40AWG min. ●SR-PVC/PVC insulation , comply with ROHS environmental standard ●Tinned or bare copper wire braid shield ●PVC jacket , comply with ROHS environmental standard ●Passes UL VW-1、cUL FT1 flame test ●Uniform insulation thickness to ensure easy stripping and cutting |
应用 APPLICATION
●用于一般电子、电器设备内部连接线 ●For general purpose internal wiring of appliance.
■印字 MARKING
AWM 2992 ( )AWG 105℃ 30V VW-1 E347813 CLEVER --- c AWM II A FT1 105℃ 30V （）AWG -LF-

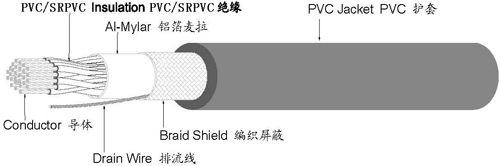

■产品结构 CABLE CONSTRUCTION
|
导体 CONDUCTOR |
绝缘 INSULATION |
屏蔽 SHIELD |
排流线 DRAIN |
编织 BRAID |
护套 JACKET |
|||||
|
规格 AWG |
构造 CONSTR- UCTION (No./mm) |
外径 DIA. (mm) |
芯数 (No) |
绝缘厚度 INSULATION THICKNESS (mm) |
外径 O.D. (mm) |
构造 CONSTRU- CTION |
构造 CONSTR- UCTION (No./mm) |
构造 CONSTRU- CTION (No./No./mm) |
护套厚度 JACKET THICKNESS (mm) |
外径 O.D. (mm) |
|
30 |
7/0.10 |
0.30 |
2 |
0.25 |
0.80 |
Al-mylar |
7/0.10 |
16/4/0.10 |
0.76 |
3.80 |
|
3 |
0.25 |
0.80 |
Al-mylar |
16/4/0.10 |
0.76 |
3.90 |
||||
|
4 |
0.25 |
0.80 |
Al-mylar |
16/5/0.10 |
0.76 |
4.20 |
||||
|
5 |
0.25 |
0.80 |
Al-mylar |
16/5/0.10 |
0.76 |
4.40 |
||||
|
6 |
0.25 |
0.80 |
Al-mylar |
16/6/0.10 |
0.76 |
4.60 |
||||
|
7 |
0.25 |
0.80 |
Al-mylar |
16/6/0.10 |
0.76 |
4.60 |
||||
|
8 |
0.25 |
0.80 |
Al-mylar |
16/7/0.10 |
0.76 |
4.90 |
||||
|
9 |
0.25 |
0.80 |
Al-mylar |
16/7/0.10 |
0.76 |
5.2 |
||||
|
10 |
0.25 |
0.80 |
Al-mylar |
16/7/0.10 |
0.76 |
5.5 |
||||
|
28 |
7/0.127 |
0.38 |
2 |
0.26 |
0.90 |
Al-mylar |
7/0.127 |
16/5/0.10 |
0.76 |
4.00 |
|
3 |
0.26 |
0.90 |
Al-mylar |
16/5/0.10 |
0.76 |
4.50 |
||||
|
4 |
0.26 |
0.90 |
Al-mylar |
16/6/0.10 |
0.76 |
4.50 |
||||
|
5 |
0.26 |
0.90 |
Al-mylar |
16/6/0.10 |
0.76 |
5.00 |
||||
|
6 |
0.26 |
0.90 |
Al-mylar |
16/6/0.10 |
0.76 |
5.00 |
||||
|
7 |
0.26 |
0.90 |
Al-mylar |
16/6/0.10 |
0.76 |
5.50 |
||||
|
8 |
0.26 |
0.90 |
Al-mylar |
16/7/0.10 |
0.76 |
5.50 |
||||
|
9 |
0.26 |
0.90 |
Al-mylar |
16/8/0.10 |
0.76 |
5.50 |
||||
|
10 |
0.26 |
0.90 |
Al-mylar |
16/8/0.10 |
0.76 |
6.00 |
||||
|
26 |
7/0.16 |
0.48 |
2 |
0.26 |
1.00 |
Al-mylar |
7/0.16 |
16/5/0.10 |
0.76 |
4.50 |
|
3 |
0.26 |
1.00 |
Al-mylar |
16/6/0.10 |
0.76 |
5.00 |
||||
|
4 |
0.26 |
1.00 |
Al-mylar |
16/6/0.10 |
0.76 |
5.00 |
||||
|
5 |
0.26 |
1.00 |
Al-mylar |
16/6/0.10 |
0.76 |
5.50 |
||||
|
6 |
0.26 |
1.00 |
Al-mylar |
16/7/0.10 |
0.76 |
5.50 |
||||
|
7 |
0.26 |
1.00 |
Al-mylar |
16/7/0.10 |
0.76 |
5.50 |
||||
|
8 |
0.26 |
1.00 |
Al-mylar |
16/7/0.10 |
0.76 |
6.00 |
||||
|
9 |
0.26 |
1.00 |
Al-mylar |
16/8/0.10 |
0.76 |
6.00 |
||||
|
10 |
0.26 |
1.00 |
Al-mylar |
16/8/0.10 |
0.76 |
6.50 |
||||
|
24 |
11/0.16 |
0.61 |
2 |
0.25 |
1.10 |
Al-mylar |
11/0.16 |
16/5/0.10 |
0.76 |
4.50 |
|
3 |
0.25 |
1.10 |
Al-mylar |
16/5/0.10 |
0.76 |
5.00 |
||||
|
4 |
0.25 |
1.10 |
Al-mylar |
16/6/0.10 |
0.76 |
5.00 |
||||
|
5 |
0.25 |
1.10 |
Al-mylar |
16/6/0.10 |
0.76 |
5.50 |
||||
|
6 |
0.25 |
1.10 |
Al-mylar |
16/7/0.10 |
0.76 |
6.00 |
||||
|
7 |
0.25 |
1.10 |
Al-mylar |
16/7/0.10 |
0.76 |
6.00 |
||||
|
8 |
0.25 |
1.10 |
Al-mylar |
16/7/0.10 |
0.76 |
6.00 |
||||
|
9 |
0.25 |
1.10 |
Al-mylar |
16/8/0.10 |
0.76 |
6.50 |
||||
|
10 |
0.25 |
1.10 |
Al-mylar |
16/8/0.10 |
0.76 |
6.50 |
||||
|
22 |
17/0.16 |
0.76 |
2 |
0.27 |
1.30 |
Al-mylar |
17/0.16 |
16/6/0.10 |
0.76 |
4.80 |
|
3 |
0.27 |
1.30 |
Al-mylar |
16/6/0.10 |
0.76 |
5.00 |
||||
|
4 |
0.27 |
1.30 |
Al-mylar |
16/7/0.10 |
0.76 |
5.40 |
||||
|
5 |
0.27 |
1.30 |
Al-mylar |
16/8/0.10 |
0.76 |
5.80 |
||||
|
6 |
0.27 |
1.30 |
Al-mylar |
16/7/0.12 |
0.76 |
6.20 |
||||
|
7 |
0.27 |
1.30 |
Al-mylar |
16/7/0.12 |
0.76 |
6.20 |
||||
|
8 |
0.27 |
1.30 |
Al-mylar |
16/8/0.12 |
0.76 |
6.60 |
||||
|
9 |
0.27 |
1.30 |
Al-mylar |
24/6/0.12 |
0.76 |
7.20 |
||||
|
10 |
0.27 |
1.30 |
Al-mylar |
24/6/0.12 |
0.76 |
7.50 |
||||
|
20 |
26/0.16 |
0.94 |
2 |
0.28 |
1.50 |
Al-mylar |
26/0.16 |
16/7/0.10 |
0.76 |
4.80 |
|
3 |
0.28 |
1.50 |
Al-mylar |
16/7/0.10 |
0.76 |
5.10 |
||||
|
4 |
0.28 |
1.50 |
Al-mylar |
16/8/0.10 |
0.76 |
5.50 |
||||
|
5 |
0.28 |
1.50 |
Al-mylar |
16/8/0.12 |
0.76 |
5.90 |
||||
|
6 |
0.28 |
1.50 |
Al-mylar |
24/6/0.12 |
0.76 |
6.40 |
||||
|
7 |
0.28 |
1.50 |
Al-mylar |
24/6/0.12 |
0.76 |
6.40 |
||||
|
8 |
0.28 |
1.50 |
Al-mylar |
24/6/0.12 |
0.76 |
6.80 |
||||
|
9 |
0.28 |
1.50 |
Al-mylar |
24/7/0.12 |
0.76 |
7.40 |
||||
|
10 |
0.28 |
1.50 |
Al-mylar |
24/7/0.12 |
0.76 |
7.90 |
||||
|
18 |
41/0.16 |
1.18 |
2 |
0.30 |
1.80 |
Al-mylar |
41/0.16 |
16/8/0.10 |
0.76 |
5.50 |
|
3 |
0.30 |
1.80 |
Al-mylar |
16/8/0.12 |
0.76 |
5.70 |
||||
|
4 |
0.30 |
1.80 |
Al-mylar |
16/8/0.12 |
0.76 |
6.20 |
||||
|
5 |
0.30 |
1.80 |
Al-mylar |
24/6/0.12 |
0.76 |
6.70 |
||||
|
6 |
0.30 |
1.80 |
Al-mylar |
24/6/0.12 |
0.76 |
7.50 |
||||
|
7 |
0.30 |
1.80 |
Al-mylar |
24/6/0.12 |
0.76 |
7.50 |
||||
|
8 |
0.30 |
1.80 |
Al-mylar |
24/7/0.12 |
0.76 |
7.80 |
||||
|
9 |
0.30 |
1.80 |
Al-mylar |
24/8/0.12 |
0.76 |
8.50 |
||||
|
10 |
0.30 |
1.80 |
Al-mylar |
24/8/0.12 |
0.76 |
9.20 |
||||
conductor tolerance 单支导体公差：+/-0.005mm, wire tolerance芯线外径公差：ＯＤ+/-0.10mm。
以上仅供参考，详细规格按双方确认规格书为准。
