UL3275无卤交联线 HALOGEN FREE CROSSLINKED WIRE
说明 PRODUCT DESCRIPTION
●额定温度:105℃ ●额定电压:1000V ●参考标准:UL758,UL1581 ●导体使用单支或绞合26~9AWG镀锡或裸铜 ●FR-XLPE绝缘,符合ROHS环保标准 ●通过UL&cUL FT2水平阻燃测试 ●使用标准绝缘厚度、易裁线、易剥皮 |
●Rated temperature:105℃ ●Rated voltage:1000V ●Reference standard:UL758,UL1581 ●Solid or stranded ,tinned or bare copper conductor 26~9AWG ●FR-XLPE insulation ,comply with ROHS environmental standard ●Passes UL&cUL FT2 flame test ●Uniform insulation thickness to ensure easy stripping and cutting |
应用 APPLICATION
●用于一般电子、电器设备内部连接线 ●For general purpose internal wiring of appliance.
■印字 MARKING
AWM 3275 ( )AWG 105℃ 1000V E347813 CLEVER --- c AWM I A FT2 105℃ 1000V ()AWG – HF- -LF-

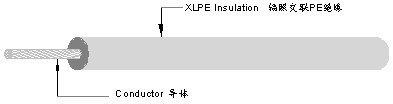

■产品结构 CABLE CONSTRUCTION
UL型号
UL STYLE |
导体 CONDUCTOR |
绝缘 INSULATION |
包装长度 PACKAGING LENGTH |
最大导体电阻 MAX.COND. RESISTANCE (Ω/km,20℃,DC) |
||||
线规 AWG |
线数/线径 No./mm |
外径 DIA. (mm) |
厚度 THICKNESS (mm) |
外径 O.D. (mm) |
英制 Ft/Coil |
公制 M/Coil |
||
UL3275 绞 线 (Stranded) |
26 |
7/0.16 |
0.48 |
0.80 |
2.10 |
2000 |
610 |
150 |
24 |
11/0.16 |
0.61 |
0.80 |
2.25 |
94.2 |
|||
22 |
17/0.16 |
0.76 |
0.80 |
2.40 |
59.4 |
|||
20 |
26/0.16 |
0.94 |
0.80 |
2.55 |
36.7 |
|||
18 |
41/0.16 |
1.18 |
0.80 |
2.80 |
23.2 |
|||
16 |
26/0.254 |
1.49 |
0.80 |
3.10 |
1000 |
305 |
14.6 |
|
14 |
41/0.254 |
1.88 |
0.80 |
3.50 |
8.96 |
|||
12 |
65/0.254 |
2.36 |
0.80 |
4.00 |
5.64 |
|||
10 |
105/0.254 |
3.42 |
0.80 |
5.05 |
3.54 |
|||
UL3275 单 支 (Solid) |
26 |
1/0.404 |
0.40 |
0.80 |
2.00 |
2000 |
610 |
143 |
24 |
1/0.511 |
0.51 |
0.80 |
2.10 |
89.3 |
|||
22 |
1/0.643 |
0.64 |
0.80 |
2.25 |
56.4 |
|||
20 |
1/0.813 |
0.81 |
0.80 |
2.40 |
35.2 |
|||
18 |
1/1.024 |
1.02 |
0.80 |
2.65 |
22.2 |
|||
16 |
1/1.29 |
1.29 |
0.80 |
2.90 |
14.0 |
conductor tolerance 单支导体公差:+/-0.005mm, wire tolerance芯线外径公差:OD+/-0.10mm。
以上仅供参考,详细规格按双方确认规格书为准。
