UL1533单芯屏蔽线 SINGLE CONDUCTOR SHIELDED CABLE
说明 PRODUCT DESCRIPTION
|
●额定温度：80℃ ●额定电压：无规定 ●参考标准：UL758,UL1581 ●导体使用单支或绞合30~16AWG镀锡或裸铜 ●SR-PVC绝缘，符合ROHS环保标准 ●PVC护套，符合ROHS环保标准 ●镀锡或裸铜缠绕屏蔽 ●通过UL VW-1、cUL FT1及JQA F-Mark阻燃测试 ●使用标准绝缘厚度、易裁线、易剥皮 |
●Rated temperature：80℃ ●Rated voltage：not specified ●Reference standard：UL758,UL1581 ●Solid or stranded ,tinned or bare copper conductor 30~16AWG ●SR-PVC insulation, comply with ROHS environmental standard ●PVC jacket , comply with ROHS environmental standard ●Tinned or bare copper wire spiral shield ●Passes UL VW-1,cUL FT1 and JQA F-Mark flame test ●Uniform insulation thickness to ensure easy stripping and cutting |
应用 APPLICATION
●用于一般电子、电器设备内部连接线 ●For general purpose internal wiring of appliance.
■印字 MARKING
AWM 1533 ( )AWG 80℃ VW-1 E347813 CLEVER --- c AWM I A FTI 80℃（）AWG -LF-

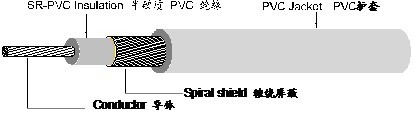

■产品结构 CABLE CONSTRUCTION
|
UL型号
UL STYLE |
导体 CONDUCTOR |
绝缘 INSULATION |
缠绕 SPIRAL |
护套 JACKET |
包装长度 PACKAGING LENGTH |
最大导体电阻 MAX.COND. RESISTANCE （Ω/km,20℃,DC） |
|||||
|
线规 AWG |
线数/线径 No./mm |
外径 DIA. (mm) |
绝缘厚度 INSULATION THICKNESS (mm) |
外径 O.D. (mm) |
构造 CONSTRUCTION (No./mm) |
护套厚度 JACKET THICKNESS (mm) |
外径 O.D. (mm) |
英制 Ft/Coil |
公制 M/Coil |
||
|
UL1533
|
30 |
7/0.10 |
0.30 |
0.25 |
0.80 |
25/0.10 |
0.35 |
1.65 |
2000 |
610 |
381 |
|
28 |
7/0.127 |
0.38 |
0.25 |
0.90 |
26/0.10 |
0.35 |
1.80 |
239 |
|||
|
26 |
7/0.16 |
0.48 |
0.25 |
1.00 |
30/0.10 |
0.35 |
1.90 |
150 |
|||
|
24 |
11/0.16 |
0.61 |
0.25 |
1.10 |
32/0.10 |
0.35 |
2.00 |
94.2 |
|||
|
22 |
17/0.16 |
0.76 |
0.25 |
1.30 |
37/0.10 |
0.35 |
2.20 |
59.4 |
|||
|
20 |
26/0.16 |
0.94 |
0.25 |
1.50 |
42/0.10 |
0.35 |
2.40 |
36.7 |
|||
|
18 |
41/0.16 |
1.18 |
0.30 |
1.80 |
50/0.10 |
0.35 |
2.70 |
23.2 |
|||
|
16 |
26/0.254 |
1.49 |
0.30 |
2.10 |
58/0.10 |
0.35 |
3.00 |
14.6 |
|||
conductor tolerance 单支导体公差：+/-0.005mm, wire tolerance导线外径公差：ＯＤ+/-0.10mm
以上仅供参考，详细规格按双方确认规格书为准。
