UL 3068硅胶编织电线 SILICONE RUBBER BRAID WIRE
说明 PRODUCT DESCRIPTION
|
●额定温度：150℃ ●额定电压：300V ●参考标准：UL758,UL1581 ●导体使用单支或绞合30-16AWG镀锡或裸铜 ●硅橡胶绝缘，符合ROHS环保标准 ●玻璃纤维编织，符合ROHS环保标准 ●通过UL & CSA FT2阻燃测试 ●使用标准绝缘厚度、易裁线 、易剥皮 |
●Rated temperature：150℃ ●Rated voltage：300V ●Reference standard：UL758,UL1581 ●Solid or stranded tinned or bare copper conductor 30-16AWG ●Silicone rubber insulation , comply with ROHS environmental standard ●Fiberglass braid comply with ROHS environmental standard ●Passes UL & CSA FT2 flame test ●Uniform insulation thickness to ensure easy stripping and cutting |
应用 APPLICATION
●用于一般电子、电器设备内部连接线 ●For general purpose internal wiring of appliance.
■印字 MARKING
AWM 3068 ( )AWG 150℃ 300V E347813 CLEVER --- c AWM I A FT2 150℃ 300V（）AWG -LF-

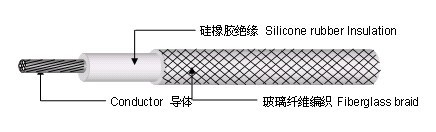

■产品结构 CABLE CONSTRUCTION
|
UL型号 3068 UL STYLE |
导体 CONDUCTOR |
绝缘 INSULATION |
外绝缘 COVERING |
包装长度 PACKAGING LENGTH |
最大导体电阻 MAX.COND. RESISTANCE （Ω/km,20℃,DC） |
|||||
|
线规 AWG |
线数/线径 No./mm |
外径 DIA. (mm) |
绝缘厚度 INSULATION THICKNESS (mm) |
外径 O.D. (mm) |
护套厚度 JACKET THICKNESS (mm) |
外径 O.D. (mm) |
英制 Ft/Coil |
公制 M/Coil |
||
|
28 |
7/0.127 |
0.38 |
0.40 |
1.20 |
0.15 |
1.50 |
2000 |
610 |
239 |
|
|
26 |
7/0.16 |
0.48 |
0.40 |
1.30 |
0.15 |
1.60 |
150 |
|||
|
24 |
7/0.2 |
0.61 |
0.40 |
1.40 |
0.15 |
1.70 |
94.2 |
|||
|
22 |
7/0.3 |
0.76 |
0.40 |
1.60 |
0.15 |
1.90 |
59.4 |
|||
|
20 |
7/0.254 |
0.94 |
0.40 |
1.80 |
0.15 |
2.10 |
36.7 |
|||
|
18 |
7/0.39 |
1.18 |
0.40 |
2.10 |
0.15 |
2.40 |
23.2 |
|||
|
16 |
7/0.49 |
1.49 |
0.40 |
2.40 |
0.15 |
2.70 |
14.6 |
|||
|
UL3068 单 支 (Solid) |
28 |
1/0.32 |
0.32 |
0.40 |
1.10 |
0.15 |
1.40 |
2000 |
610 |
227 |
|
26 |
1/0.404 |
0.40 |
0.40 |
1.25 |
0.15 |
1.55 |
143 |
|||
|
24 |
1/0.511 |
0.51 |
0.40 |
1.35 |
0.15 |
1.65 |
89.3 |
|||
|
22 |
1/0.643 |
0.64 |
0.40 |
1.50 |
0.15 |
1.80 |
56.4 |
|||
|
20 |
1/0.813 |
0.81 |
0.40 |
1.65 |
0.15 |
1.95 |
35.2 |
|||
|
18 |
1/1.024 |
1.02 |
0.40 |
1.85 |
0.15 |
2.15 |
22.2 |
|||
|
16 |
1/1.29 |
1.29 |
0.40 |
2.20 |
0.15 |
2.50 |
14.0 |
|||
conductor tolerance 单支导体公差：+/-0.005mm, wire tolerance芯线外径公差：ＯＤ+/-0.10mm。
以上仅供参考，详细规格按双方确认规格书为准。
