UL3321抗粘连XLPE线
    发布时间: 2021-05-23 22:01
UL3321抗粘连XLPE线

UL3321抗粘连XLPE线                     HALOGEN FREE CROSSLINKED WIRE

说明                                                                                 PRODUCT DESCRIPTION

●额定温度:150

●额定电压:600V

●参考标准:UL758,UL1581

●导体使用单支或绞合30~9AWG镀锡或裸铜

FR-XLPE绝缘,符合ROHS环保标准

●通过UL&cUL FT2水平阻燃测试

●使用标准绝缘厚度、易裁线、易剥皮

Rated temperature150

Rated voltage600V

Reference standardUL758,UL1581

Solid or stranded ,tinned or bare copper conductor 30~9AWG

FR-XLPE insulation ,comply with ROHS environmental standard

Passes UL&cUL FT2 flame test

Uniform insulation thickness to ensure easy stripping and cutting

应用                                                                                  APPLICATION

 ●用于一般电子、电器设备内部连接线              For general purpose internal wiring of appliance.





印字 MARKING

220V  E******     AWM  220V  STYLE  3321  XX.AWG  220V 150  600V  CLEVER  XLPE   220V  C     AWM  I  A/B  220V  150  600V  FT2  LF  220V

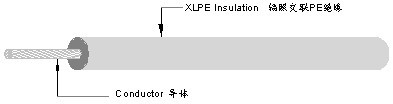

产品结构   CABLE CONSTRUCTION

UL型号



UL STYLE

导体

CONDUCTOR

绝缘

INSULATION

包装长度

PACKAGING LENGTH

最大导体电阻

MAX.COND.

RESISTANCE Ω/km,20℃,DC

 线规

AWG

 线数/线径

No./mm

外径

DIA.

(mm)

厚度

THICKNESS

mm

外径

O.D.

(mm)

英制

Ft/Coil

公制

M/Coil

UL3321

  线

(Stranded)



30

7/0.10

0.30

0.80

1.90

2000

610

381

28

7/0.127

0.38

2.00

239

26

7/0.16

0.48

2.10

150

24

11/0.16

0.61

2.25

94.2

22

17/0.16

0.76

2.40

59.4

20

26/0.16

0.94

2.55

36.7

18

41/0.16

1.18

2.80

23.2

16

26/0.254

1.49

3.10

1000

305

14.6

14

41/0.254

1.88

3.50

8.96

12

65/0.254

2.36

4.00

5.64

10

105/0.254

3.42

5.05

3.54

UL3321

先绞后镀

(Top-coated)



30

7/0.10

0.30

0.80

1.90

2000

610

381

28

7/0.127

0.38

2.00

239

26

7/0.16

0.48

2.10

150

24

7/0.203

0.61

2.25

94.2

22

7/0.254

0.76

2.40

59.4

20

7/0.32

0.96

2.55

36.7

18

7/0.404

1.20

2.80

23.2

conductor tolerance 单支导体公差:+/-0.005mm, wire tolerance导线外径公差:OD+/-0.10mm
