UL3321抗粘连XLPE线 HALOGEN FREE CROSSLINKED WIRE
说明 PRODUCT DESCRIPTION
|
●额定温度：150℃ ●额定电压：600V ●参考标准：UL758,UL1581 ●导体使用单支或绞合30~9AWG镀锡或裸铜 ●FR-XLPE绝缘，符合ROHS环保标准 ●通过UL&cUL FT2水平阻燃测试 ●使用标准绝缘厚度、易裁线、易剥皮 |
●Rated temperature：150℃ ●Rated voltage：600V ●Reference standard：UL758,UL1581 ●Solid or stranded ,tinned or bare copper conductor 30~9AWG ●FR-XLPE insulation ,comply with ROHS environmental standard ●Passes UL&cUL FT2 flame test ●Uniform insulation thickness to ensure easy stripping and cutting |
应用 APPLICATION
●用于一般电子、电器设备内部连接线 ●For general purpose internal wiring of appliance.
■印字 MARKING
COM X2 E****** AWM COM X2 STYLE 3321 18AWG COM X2 150℃ 600V CLEVER XLPE COM X2 c AWM I A/B COM X2 150℃ 600V FT2 LF COM X2

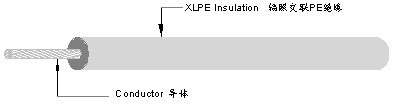

■产品结构 CABLE CONSTRUCTION
|
UL型号
UL STYLE |
导体 CONDUCTOR |
绝缘 INSULATION |
包装长度 PACKAGING LENGTH |
最大导体电阻 MAX.COND. RESISTANCE （Ω/km,20℃,DC） |
||||
|
线规 AWG |
线数/线径 No./mm |
外径 DIA. (mm) |
厚度 THICKNESS （mm） |
外径 O.D. (mm) |
英制 Ft/Coil |
公制 M/Coil |
||
|
UL3321 绞 线 (Stranded)
|
30 |
7/0.10 |
0.30 |
0.80 |
1.90 |
2000 |
610 |
381 |
|
28 |
7/0.127 |
0.38 |
2.00 |
239 |
||||
|
26 |
7/0.16 |
0.48 |
2.10 |
150 |
||||
|
24 |
11/0.16 |
0.61 |
2.25 |
94.2 |
||||
|
22 |
17/0.16 |
0.76 |
2.40 |
59.4 |
||||
|
20 |
26/0.16 |
0.94 |
2.55 |
36.7 |
||||
|
18 |
41/0.16 |
1.18 |
2.80 |
23.2 |
||||
|
16 |
26/0.254 |
1.49 |
3.10 |
1000 |
305 |
14.6 |
||
|
14 |
41/0.254 |
1.88 |
3.50 |
8.96 |
||||
|
12 |
65/0.254 |
2.36 |
4.00 |
5.64 |
||||
|
10 |
105/0.254 |
3.42 |
5.05 |
3.54 |
||||
|
UL3321 先绞后镀 (Top-coated)
|
30 |
7/0.10 |
0.30 |
0.80 |
1.90 |
2000 |
610 |
381 |
|
28 |
7/0.127 |
0.38 |
2.00 |
239 |
||||
|
26 |
7/0.16 |
0.48 |
2.10 |
150 |
||||
|
24 |
7/0.203 |
0.61 |
2.25 |
94.2 |
||||
|
22 |
7/0.254 |
0.76 |
2.40 |
59.4 |
||||
|
20 |
7/0.32 |
0.96 |
2.55 |
36.7 |
||||
|
18 |
7/0.404 |
1.20 |
2.80 |
23.2 |
||||
conductor tolerance 单支导体公差：+/-0.005mm, wire tolerance导线外径公差：ＯＤ+/-0.10mm
