AVX/AEX 汽车线 AUTOMOTIVE WIRE
说明 PRODUCT DESCRIPTION
●额定温度:AVX为100℃;AEX为120℃ ●参考标准:JASO D 608/1992 ●导体使用绞合0.5~8mm2裸铜 ●XLPVC/XLPE绝缘,符合ROHS环保标准 ●通过JASO D 608/1992 5.9阻燃测试 ●使用标准绝缘厚度、易裁线、易剥皮 |
●Rated temperature:AVX is 100℃,AEX is 120℃ ●Reference standard:JASO D 608/1992 ●Stranded, bare copper conductor0.5~8mm2 ●XLPVC/XLPE insulation , comply with ROHS environmental standard ●Passes JASO D 608/1992 5.9 flame test ●Uniform insulation thickness to ensure easy stripping and cutting |
应用 APPLICATION
●用于汽车内部连接线 ●For vehicle internal wiring of appliance
■印字 MARKING
AVX-AEX ()mm2 Auto wire CLEVER 或不印字

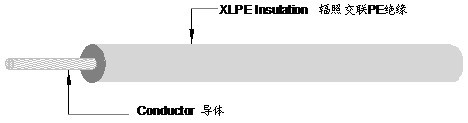

■产品结构 CABLE CONSTRUCTION
型号
STYLE |
导体 CONDUCTOR |
绝缘 INSULATION |
包装长度 PACKAGING LENGTH |
最大导体电阻 MAX.COND. RESISTANCE (Ω/km,20℃,DC) |
||||
面积 CROSS SECTION (mm2) |
线数/线径 No./mm |
外径 DIA. (mm) |
厚度 THICKNESS (mm) |
外径 O.D. (mm) |
英制 Ft/Coil |
公制 M/Coil |
||
AVX/AEX |
0.5f |
20/0.18 |
0.93 |
0.59 |
2.10 |
1640 |
500 |
36.7 |
0.5 |
7/0.32 |
0.96 |
0.57 |
2.10 |
1640 |
500 |
32.7 |
|
0.75f |
30/0.18 |
1.14 |
0.58 |
2.30 |
1640 |
500 |
24.4 |
|
0.85 |
11/0.32 |
1.22 |
0.54 |
2.30 |
1640 |
500 |
20.8 |
|
1.25f |
50/0.18 |
1.47 |
0.67 |
2.80 |
1640 |
500 |
14.7 |
|
1.25 |
16/0.32 |
1.48 |
0.66 |
2.80 |
1640 |
500 |
14.3 |
|
2 |
26/0.32 |
1.88 |
0.66 |
3.20 |
980 |
300 |
8.81 |
|
3 |
41/0.32 |
2.36 |
0.77 |
3.90 |
980 |
300 |
5.59 |
|
5 |
65/0.32 |
2.98 |
0.86 |
4.70 |
980 |
300 |
3.52 |
|
8 |
50/0.45 |
3.67 |
0.87 |
5.40 |
820 |
250 |
2.32 |
conductor tolerance 单支导体公差:+/-0.005mm, wire tolerance导线外径公差:OD+/-0.10mm
